Coax 75ohm with Power TV cable

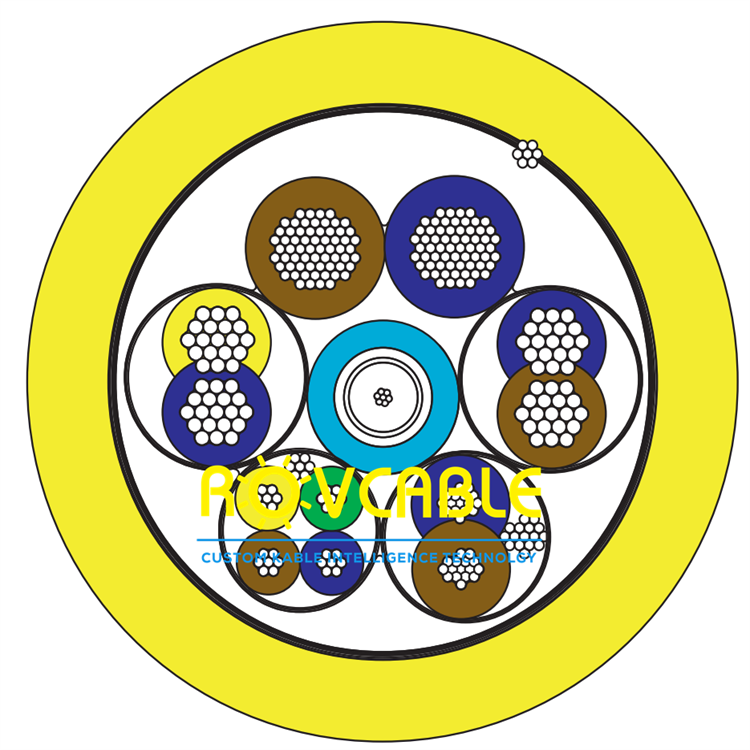

Construction characteristics

Coax 75 ohm coax (1 each)

Conductors 2.00 mm² bare copper conductor insulated with PE  (2 each)

Shielded twisted pair 0.50 mm² bare copper conductor insulated with PE.

Two conductors twisted  together with a tinned copper drain wire and aluminium/polyester foil. (1 each)

Shielded twisted quad 0.22 mm² bare copper conductor insulated with PE.

Four conductors twisted  together with a tinned copper drain wire and aluminium/polyester foil. (1 each)

Twisted pairs 1.34 mm² bare copper conductor insulated with PE

Two conductors twisted together. (2 each)

Filling compound The cable is filled with cable filling compound

Shield Aluminium/polyester foil and tinned copper drain wire, coverage 100%

Outer jacket Polyurethane jacket. Colour yellow
