Neutrally Buoyant Cable 2X26AWG

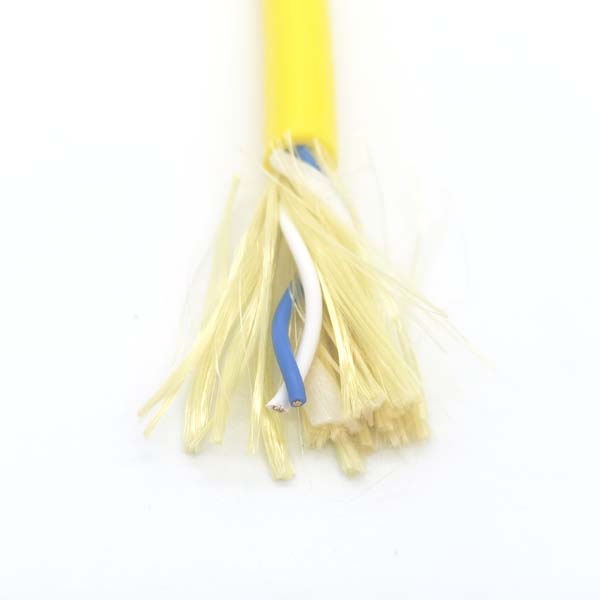

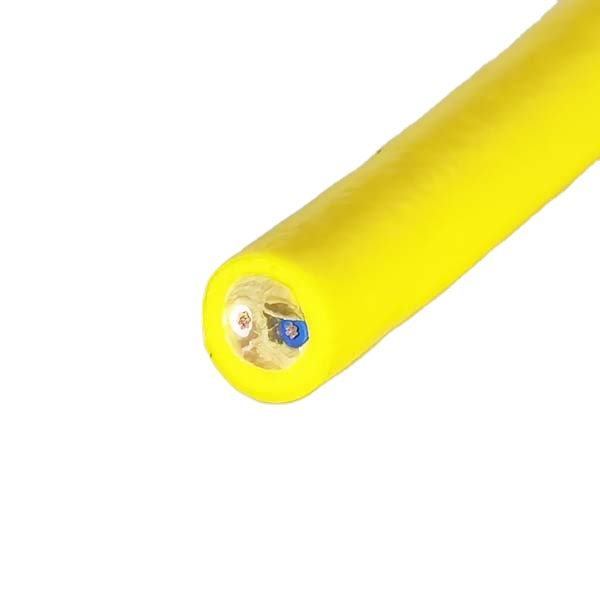

CONSTRUCTION DETAILS

1 X 2 X 26 AWG:

Pure copper conductor

Polyethylene insulation

Cores twisted in a pair

Foamed PUR sheath, color yellow

Kevlar braid strength member

Nominal overall diameter 4.3 mm

ELECTRICAL AND PHYSICAL CHARACTERISTICS

Working voltage 26 AWG 300V

Weight in air nom. 16 kg/km

Breaking strength 155 kg

Working load max. 55 kg

Recommended static bending radius min. 24 mm

Recommended dynamic bending radius min. 48 mm

Working temperature -30/+80°C
