Neutrally Buoyant Hybrid Communication cable

2X0.5mm2 + 3x2x26AWG (Double Sheath )

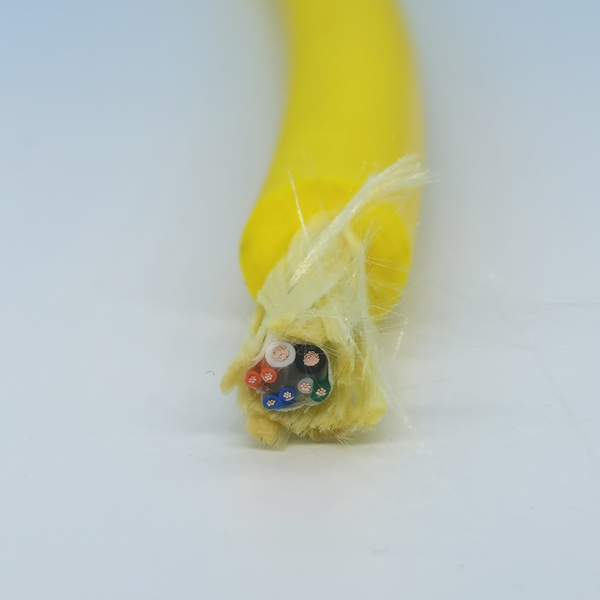

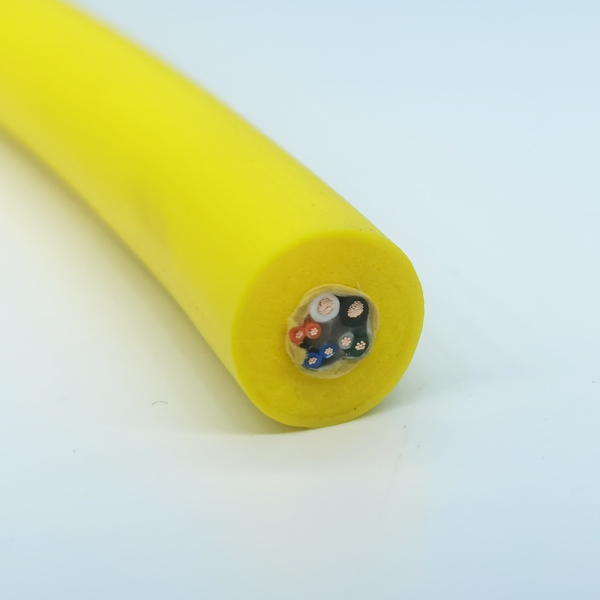

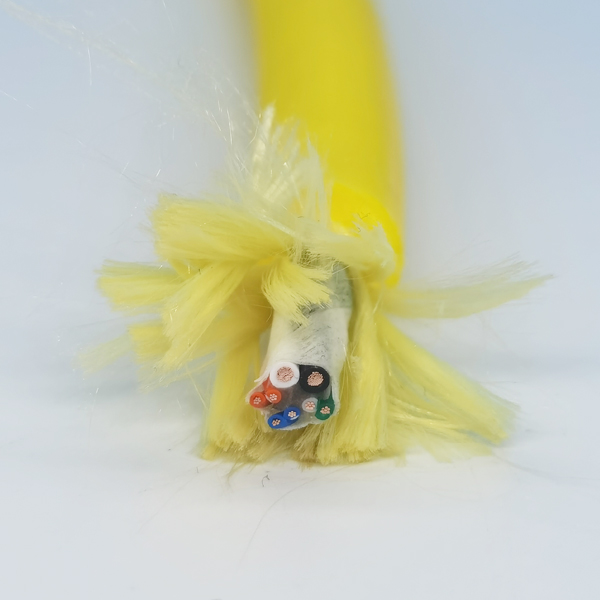

CONSTRUCTION DETAILS

2X0.5mm2 Power Cable

3X2X26AWG Date Cable

Pure copper conductor

Polyethylene insulation

Cores twisted in a pair

Foamed PUR Inner Sheath

Underwater PUR Outer Sheath

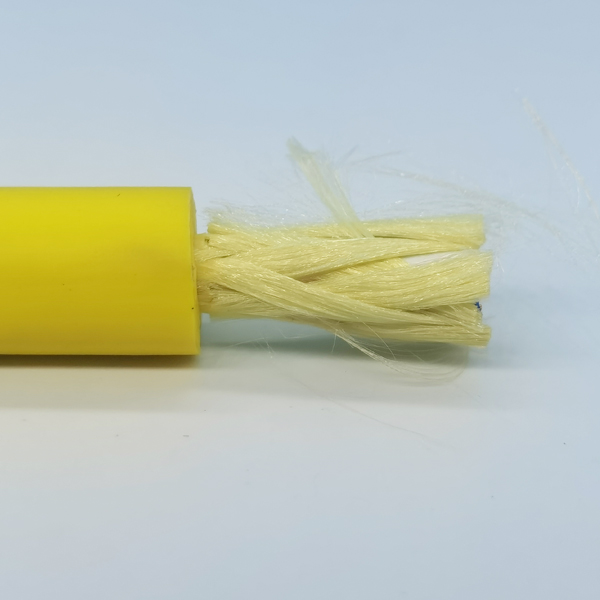

Kevlar braid strength member

Nominal overall diameter 15.0 mm

ELECTRICAL AND PHYSICAL CHARACTERISTICS

Working voltage 300V

Breaking strength 155 kg

Working load max. 55 kg

Working temperature -30/+80°C

Freshwater buoyancy :Neutral

Buoyancy in salt water :Slightly positive
