2X1.0mm2+ 6x2x0.22mm2 Power/signal cable

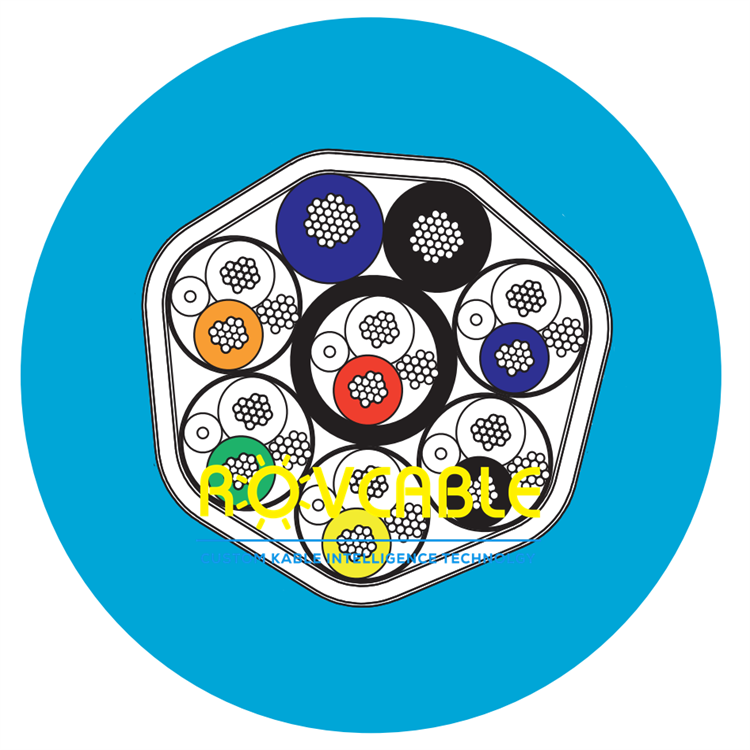

Construction characteristics

Power conductors 1.00 mm² bare copper conductor insulated with  PE (2 each)

Shielded twisted pairs 0.22 mm² bare copper conductor insulated with PE.  Two conductors twisted together with a tinned copper drain wire,  aluminium/polyester foil and a PE sheath (1 each)

Shielded twisted pairs 0.22 mm² bare copper conductor insulated with PE. Two conductors twisted  together with a tinned copper drain wire and an aluminium/polyester foil (5 each)

Shield Tinned copper braid, coverage 85% Outer jacket Polyurethane jacket, blue
