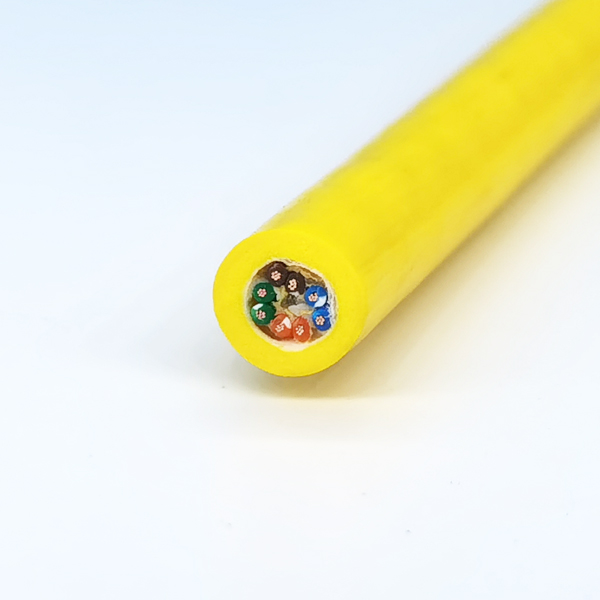

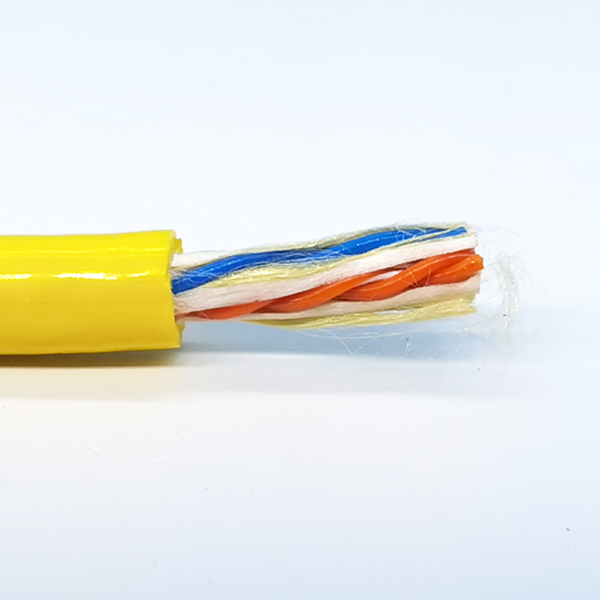

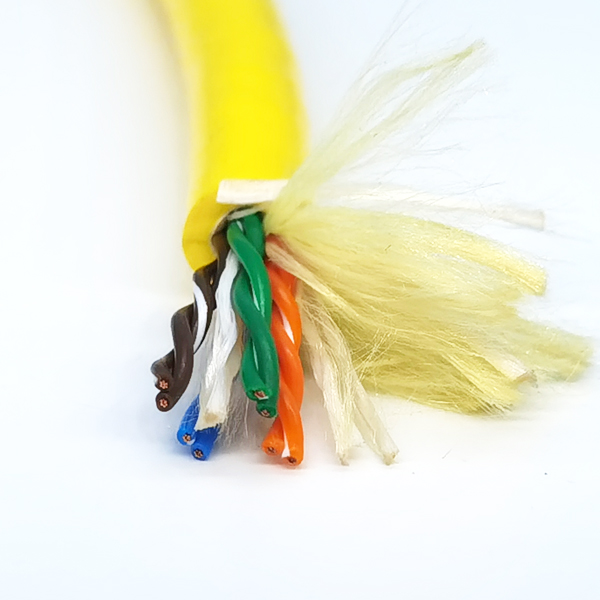

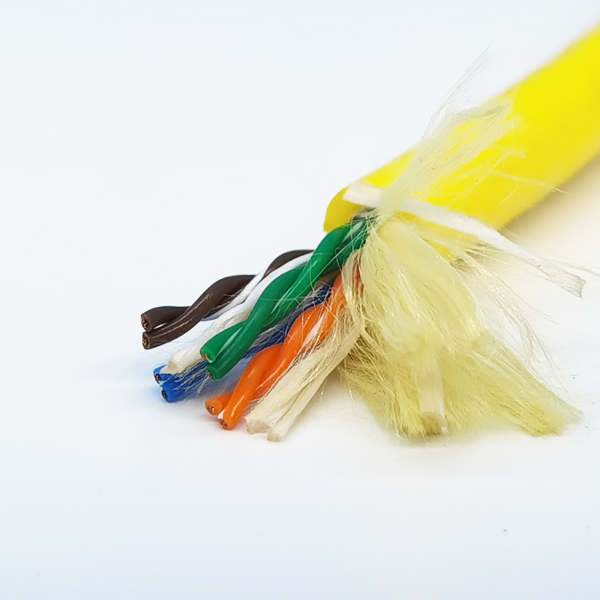

Neutrally Buoyant Cable 4X2X26AWG (Double Sheath)

CONSTRUCTION DETAILS

4 X 2 X 26 AWG

Pure copper conductor

Polyethylene insulation

Cores twisted in a pair

Foamed PUR Inner Sheath

Underwater PUR Outer Sheath

Kevlar braid strength member

Nominal overall diameter 8.5 mm

ELECTRICAL AND PHYSICAL CHARACTERISTICS

Working voltage 26 AWG 300V

Breaking strength 155 kg

Working load max. 55 kg

Working temperature -30/+80°C

Freshwater buoyancy :Neutral

Buoyancy in salt water :Slightly positive
