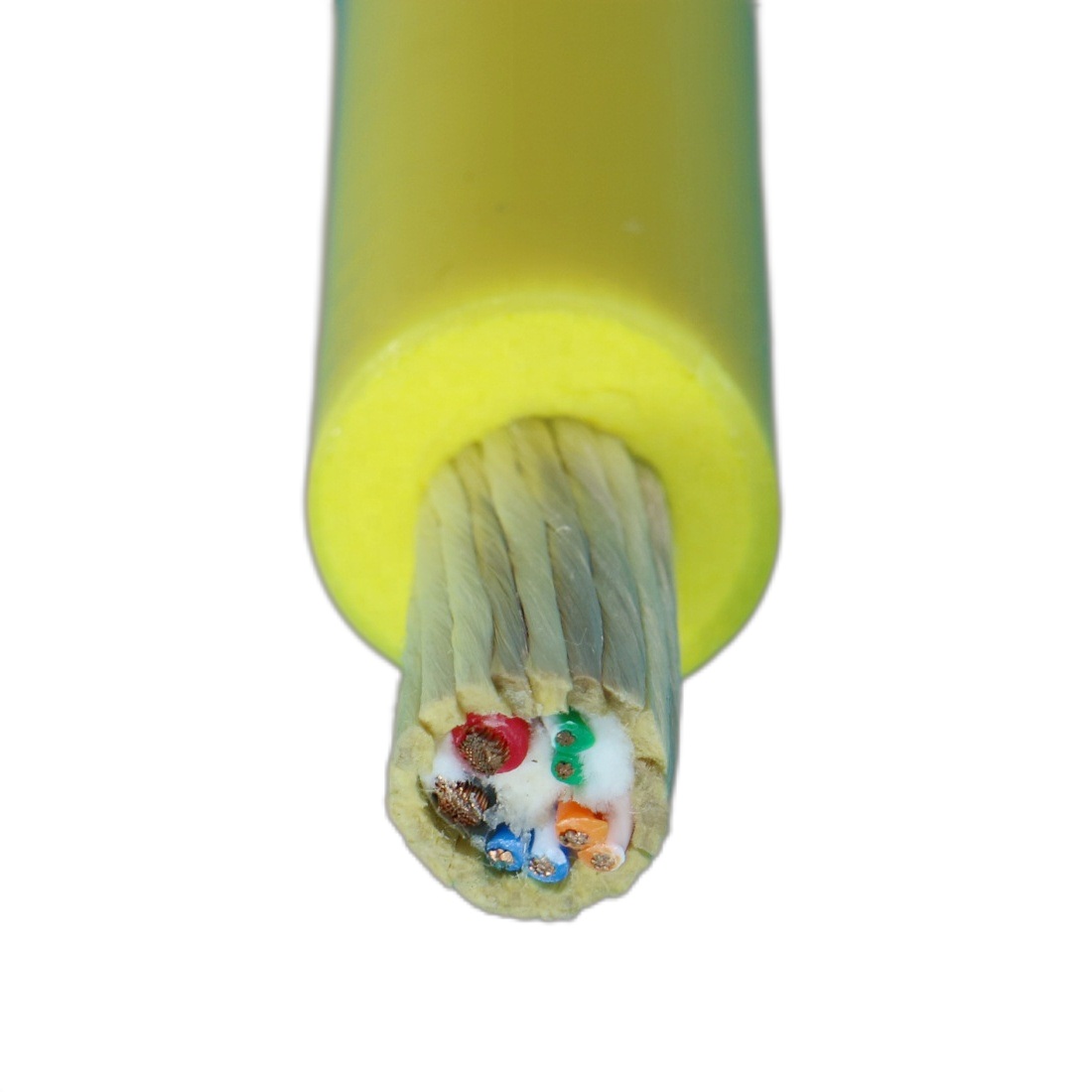

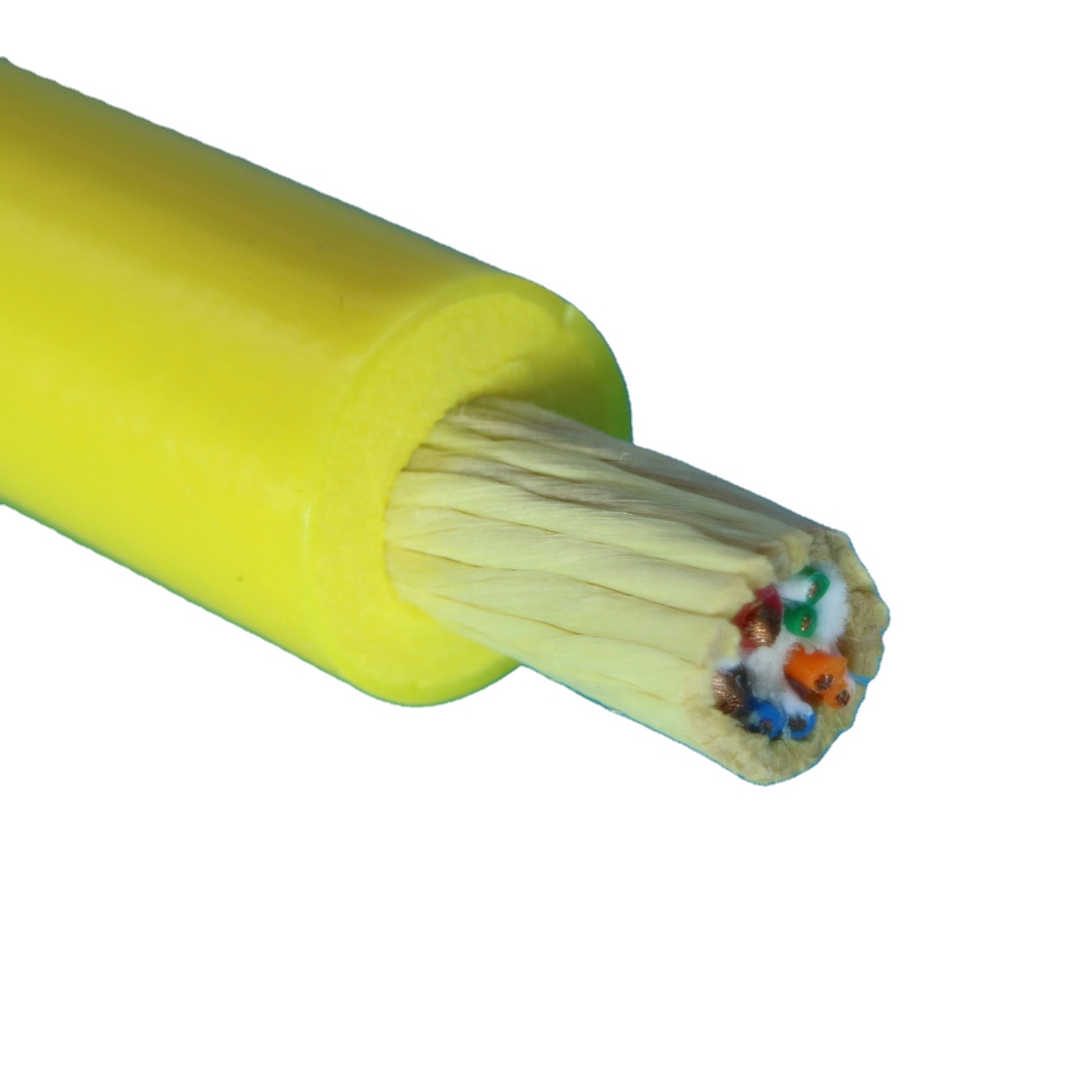

Neutrally Buoyant Hybrid Communication cable

2X1.5mm2 + 3x2x26AWG (Double Sheath )

CONSTRUCTION DETAILS

2X1.5mm2  Power Cable

3x2x26AWG  Date Cable

Pure copper conductor

Polyethylene insulation

Cores twisted in a pair

Foamed PUR Inner Sheath

Underwater PUR Outer Sheath

Kevlar braid strength member

Nominal overall diameter 17.0 mm

ELECTRICAL AND PHYSICAL CHARACTERISTICS

Working voltage 300V

Breaking strength 1000 kg

Working load max. 300 kg

Working temperature -30/+80°C

Freshwater buoyancy :Neutral

Buoyancy in salt water :Slightly positive
