Underwater TV cable with Kevlar

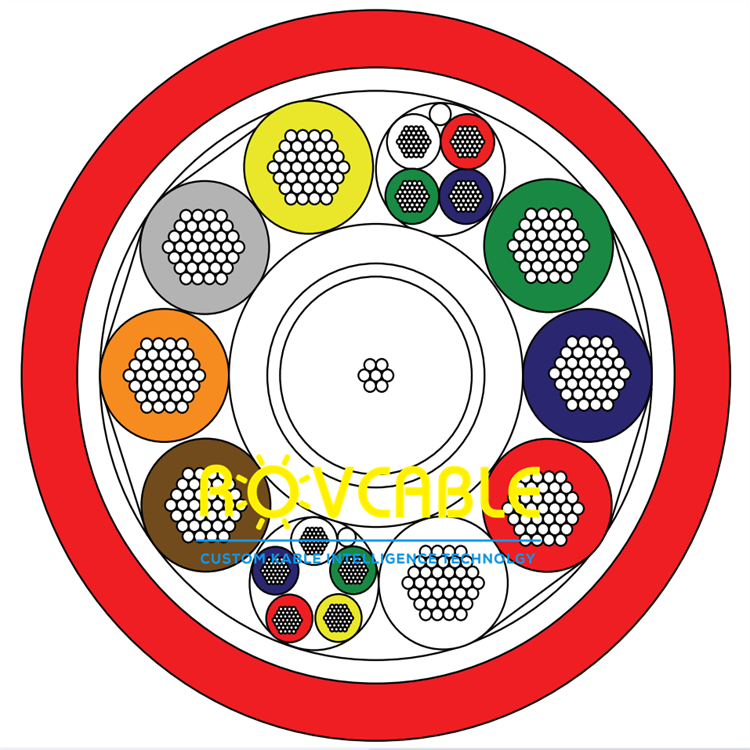

Construction characteristics

Coax 75 ohm coax (1 each) Conductors 1.00 mm² bare copper conductor insulated with PE  (8 each)

Shielded twisted quint 0.14 mm² tinned copper conductors insulated with PE.

Five conductors twisted  together with a tinned copper drain wire and aluminium/polyester foil (1 each)

Shielded twisted quad 0.22 mm² tinned copper conductors insulated with PE.

Four conductors twisted  together with a tinned copper drain wire and aluminium/polyester foil (1 each)

Filling compound The cable is filled with cable filling compound Strength member Kevlar braid

Outer jacket Polyurethane jacket. Colour red
