16x24AWG+ 4X2X26AWG LAN hybrid cable

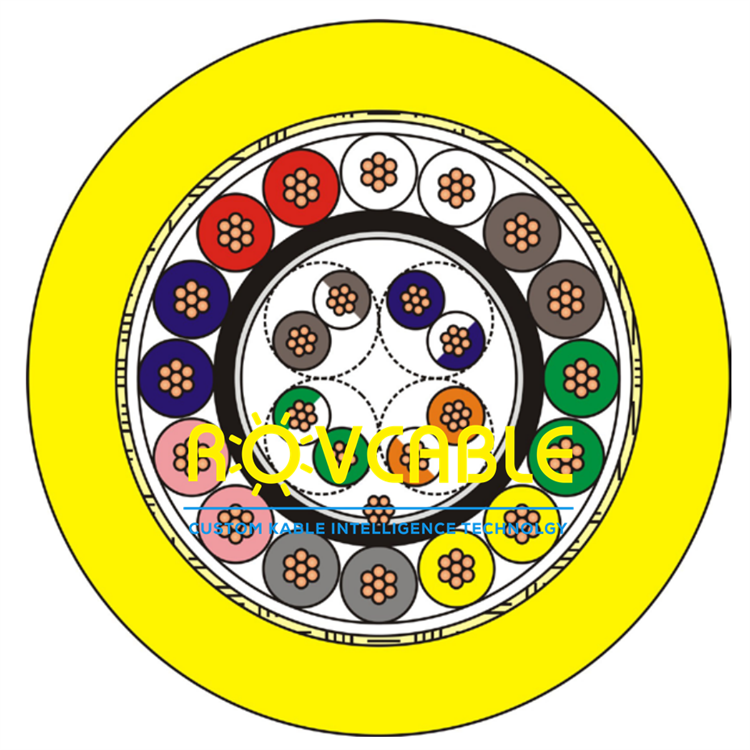

CONSTRUCTION DETAILS
16 X 24 AWG:
Copper conductor PE insulation
4 X 2 X 26 AWG:
Tinned copper conductorPE insulation
screen of polyester tape, tinned copper drain wire,
aluminium/polyester tape PE sheath, color
braid strength member
Hydrolysis UV resistant PUR outer sheath, color yellow
Nominal overall diameter 11,10 mm
