Power/signal cable Undersea Cable

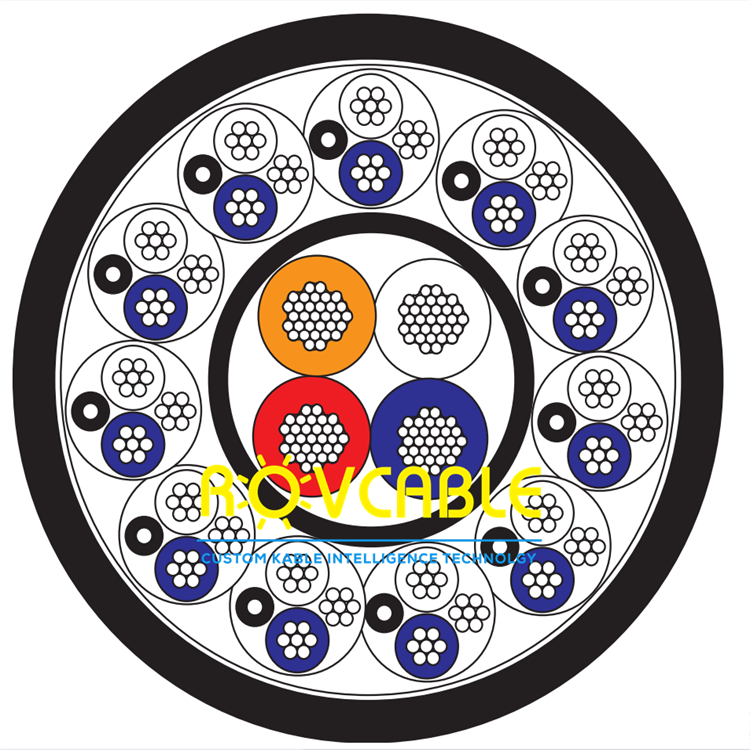

Construction characteristics

Conductor (center) 1,50 mm² bare copper conductor IEC 60228  class 5

insulated with HDPE Nominal wall thickness 0,70 mm, nominal diameter 2,95 mm

Tape Protective polyester Inner sheath  nominal wall thickness 2,10 mm. Nominal diameter 11,35 mm

Shielded twisted pair (STP) 0,50 mm² bare copper conductor IEC 60228 class 5 insulated with HDPE

Nominal wall thickness 0,43 mm, nominal diameter 1,75 mm 2 conductors twisted together white-blue with a polyester tape, tinned copper drain wire 7 x 0,3 and aluminium/polyester tape

Polyethylene sheath, nominal thickness 0,30 mm, nominal diameter 4,35 mm Colour white numbered 1-11, (11 ea)

Filling compound Silicone water blocking compound

Outer jacket Hydrolysis UV resistant Polyurethane.

Nominal wall thickness 1,70 mm, black
